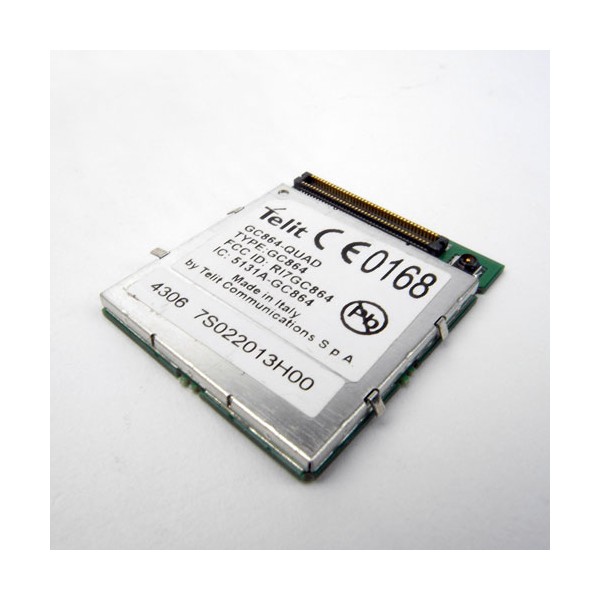

The new GC864 product family is one of the smallest GSM/GPRS quad-band modules with industrial connectors in the market.
With its ultra-compact design and extended temperature range, the Telit GC864-PY is the perfect platform for medium-volume m2m applications and mobile data devices. Additional features such as integrated TCP/IP protocol stack, integrated SIM Holder and serial multiplexer give extend functionality of the application at no additional cost.
The GC864-PY makes it possible to run the customer's application inside the module, thus making it one of the smallest, complete platforms for m2m solutions. State-of-theart SPI and IIC interfaces provide connectivity to external peripherals such as sensors and displays.
|
Product features
- Quad-band EGSM 850 / 900 / 1800 / 1900 MHz
- Output power
- Class 4 (2W) @ 850 / 900 MHz
- Class 1 (1W) @ 1800 / 1900 MHz
- Control via AT commands according to
GSM 07.05, 07.07 and Telit enhancements
- Serial port multiplexer GSM 7.10
- SIM access profile
- Supply voltage range: 3.22 – 4.5 V DC
(3.8 V DC recommended)
- TCP/IP stack access via AT commands
- Power consumption (typical values)
- Power off: ‹ 26 uA
- Idle (registered, power saving): 2.6 mA
- Dedicated mode: 200 mA
- GPRS cl.10: 370 mA
- Sensitivity:
-107 dBm (typ.) @ 850 / 900 MHz
-106 dBm (typ.) @ 1800 / 1900 MHz
- Dimensions: 30 x 36.2 x 3.2 mm
- Weight: 6.1 grams
- Extended temperature range
- 40°C to +85°C (operational)
- 40°C to +85°C (storage temperature)
- RoHS compliant
Interfaces
- 80-pin Molex connector
- 22 I/O ports maximum
- Analog audio (balanced and unbalanced)
- 3 A/D plus 1 D/A converter
- Buzzer output
- ITU-T V.24 serial link through UART:
- CMOS level
- Baud rate from 300 to 115,200 bps
- Autobauding from 1,200 to 115,200 bps
- 50 Ohm murata GSC antenna
connector
- SIM Card holder
|
Audio
- Telephony, emergency call
- Half rate, full rate, enhanced full rate and
adaptive multi rate voice codecs (HR, FR, EFR, AMR)
- Superior echo cancellation & noise reduction
- Handset & hands-free operations
- DTMF
Approvals
- Fully type approved conforming with
R&TTE
- CE, GCF, FCC, PTCRB, IC, Anatel
SMS
- Point-to-point mobile originated and
mobile terminated SMS
- Concatenated SMS supported
- SMS cell broadcast
- Text and PDU mode
Circuit switched data transmission
- Asynchronous transparent circuit switched
data (CSD) up to 14.4 kbps
- Asynchronous non-transparent CSD
up to 9.6 kbps
- V.110
GPRS Data
- GPRS class 10
- Mobile station class B
- Coding scheme 1 to 4
- PBCCH support
Fax
|
GPS Supplementary
- Call forwarding
- Call barring
- Call waiting & call hold
- Advice of charge
- Calling line identification presentation (CLIP)
- Calling line identification restriction (CLIR)
- Unstructured supplementary services mobile originated data (USSD)
- Closed user group
Additional features
- SIM phonebook
- SIM Card holder
- Fixed dialing number (FDN)
- Real-time clock
- Alarm management
- Battery management
- Network LED support
- IRA character SET, UCS2 and GSMDefault
- Jamming detection & report
- Embedded TCP/IP stack, including TCP, IP, UDP, SMTP and FTP protocols
- PFM (Premium FOTA Management) Over the Air Update
- MUX driver
- RIL driver
Python application resources
- Python* script interpreter (module
takes the application code directly in the Python* language)
- Memory: 1.9 MB of NV memory for
the user scripts and 1 MB RAM for the Python* engine usage
- Over-the-air application SW update
- IIC Bus and SPI Bus controlled in Python*
Telit's EASY features
- EASY SCAN ® automatic scan over GSM frequencies (also without SIM card)
|
