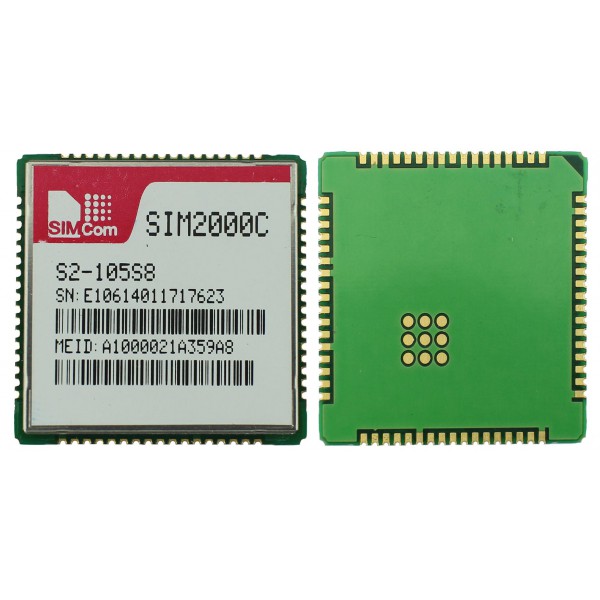

SIM2000C is a CDMA2000 1X solution in a SMT type which can be embedded in the customer applications.
SIM2000C support CDMA 800MHz, it can transmit Voice, SMS and data information with low power consumption. With
tiny size of 24*24*3 mm, it can fit into slim and compact demands of customer design.
|
General features
•Frequency band:800 MHz
•Dimensions: 24*24*3mm
•Weight: 3.4g
•Control via AT commands (3GPP2 and SIMCOM enhanced AT Commands)
•Supply voltage range 3.4 ~ 4.4V
•Low power consumption
•Operation temperature:-40℃ ~85℃
Specifications for Data
CDMA 2000 1X:
•Max Downlink:153.6Kbps
•Max Uplink:153.6Kbps
Specifications for SMS
•Point to point MO and MT
•SMS cell broadcast
•Text and PDU mode
|
Software features
•Embedded TCP/UDP protocol
•FOTA
•FTP
Specifications for voice
•8K EVRC
•13 QCELP
•Echo Cancellation
Interfaces
68 SMT pads including:
•Analog audio interface
•Serial interface
•USB interface
•Interface to external UIM 3V/1.8V
•Keypad interface
•GPIO
•ADC
•Antenna pad
|
Compatibility
•AT cellular command interface
Certifications(Plan):
•CE
•CCF
|
