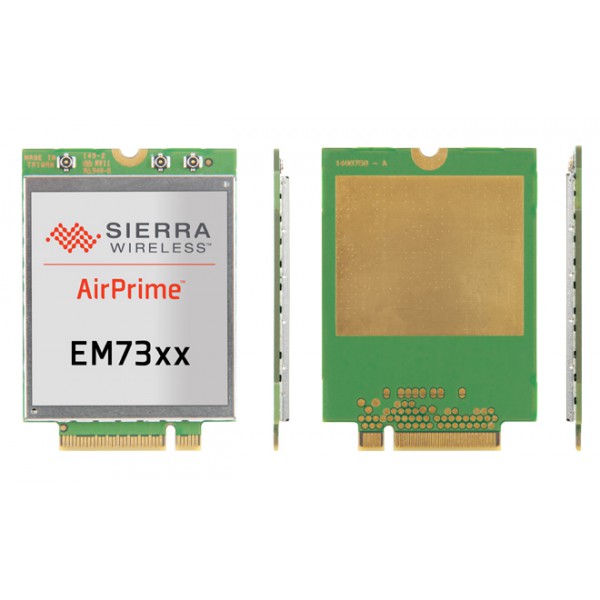

Sierra Wireless EM7305

Sierra Wireless EM7305

Part no.: EM7305
Manufacturer: Sierra Wireless

Availability: In Stock

EM Series embedded modules deliver high speed connectivity with a variety of advanced air interfaces, including LTE frequencies, around the world.
Their PCI Express M.2 form factor allows easy integration into smaller and thinner mobile computing devices like tablets or ultrathin laptops. The EM Series are optimized for low power consumption, to enable longer battery life. These modules support Windows® 7, Windows® 8.x, and Linux operating systems.

AIR INTERFACE

LTE, HSPA+, GSM/GPRS/EDGE

DATA SPEED

Peak Download Rate :  150 Mbps
Peak Upload Rate: 50 Mbps

FREQUENCY BANDS

LTE : B1, B3, B7, B8, B20
UMTS/HSPA+ : B1, B2, B5, B8
GSM/GPRS/EDGE: Quad-Band

APPROVALS

Regulatory :   CE, GCF, NCC
Carrier :  PTelefonica

Audio

Digital audio : PCM/I2S
Echo cancellation & noise reduction : available
DTMF : available



CPU PERFORMANCES

IO voltage :  1.8 V

INTERFACES

USB :  USB 2.0 High Speed
Active Antenna Control : 4 pin
Dynamic Power Control: 1 pin
Main Radio Disable : available
GNSS Disable : available
Flash LED Output : available
Wake on Wan : available
On/Off : available
Reset : available
SIM Interface : 1.8V or 3V

ANTENNA

Connectors Main, Aux/GNSS
Diversity : available

LOCATION SOLUTION

Standalone GPS, A-GPS, GPS
XTRA, Glonass





CONTROL OPTIONS

GOBI API

DRIVERS

Windows® 7 : available
Windows® 8 : available
Windows® Mobile 6.5 : available
Windows® CE 6.0 : available
Android : available
Linux : available

DEVICE DIMENSIONS

42 x 30 x 2.3 mm

OPERATIONAL TEMPERATURE

 -25°C to +60°C

WORLDWIDE DELIVERY
CUSTOM FIRMWARE VERSION AVAILABLE
