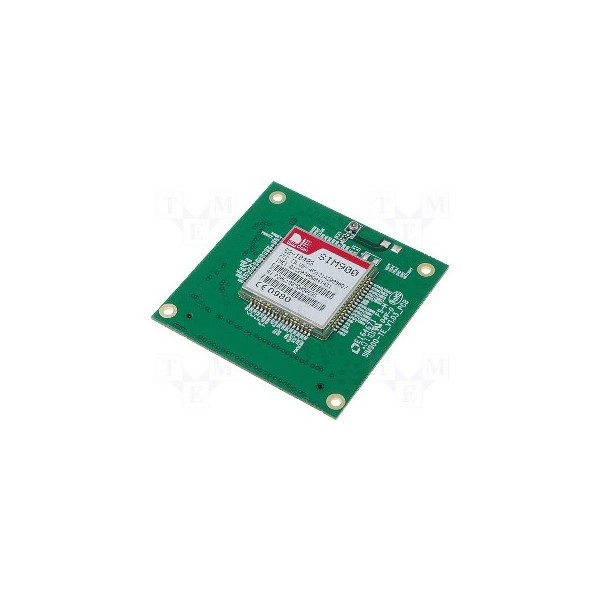

SIMCom SIM900TE-C

SIMCom SIM900TE-C

Part no.: SIM900-TE-C_V1.02
Manufacturer: SIMCom

Availability: In Stock

The SIMCom SIM900TE-C is a highly advanced and versatile GSM/GPRS module that offers seamless wireless communication capabilities. It supports a wide range of wireless bands and network standards, making it compatible with various global networks. This module is designed for applications requiring reliable and efficient wireless data transmission.

The SIM900TE-C supports quad-band frequencies, including 850/900/1800/1900MHz, ensuring global connectivity for voice and data transmission. It complies with various network standards, including GSM, GPRS, and CSD, allowing for seamless integration into existing networks.

Here are five key features of the SIM900TE-C module:

1. Embedded TCP/IP stack: This feature enables internet connectivity, allowing users to access internet-based services and applications.

2. Support for voice and data transmission: The module supports both voice and data transmission, making it suitable for applications requiring real-time communication.

3. Advanced power management: The module incorporates advanced power management techniques, ensuring efficient power usage and longer battery life.

4. External antenna interface: The module comes with an external antenna interface, enabling easy integration with different antenna types for improved signal reception.

5. Compact and robust design: The module has a compact form factor, making it suitable for space-constrained applications. It is also designed to withstand harsh environmental conditions, ensuring reliable performance in various settings.

General features

  • Quad-Band 850/ 900/ 1800/ 1900 MHz
  • GPRS multi-slot class 10/8
  • GPRS mobile station class B
  • Compliant to GSM phase 2/2+
    – Class 4 (2 W @850/ 900 MHz)
    – Class 1 (1 W @ 1800/1900MHz)
  • SAIC (Single Antenna Interference Cancellation)
  • Dimensions: 24* 24 * 3 mm
  • Weight: 3.4g
  • Control via AT commands (GSM 07.07 ,07.05 and SIMCOM enhanced AT Commands)
  • SIM application toolkit
  • Supply voltage range : 3.2 ... 4.8V
  • Low power consumption: 1.0mA(sleep mode&BS-PA-MFRMS=9)
  • Operation temperature: -40°C to +85 °C

Specification for Fax

  • Group 3, class 1

Specification for GPRS Data

  • GPRS class 10: max. 85.6 kbps (downlink)
  • PBCCH support
  • Coding schemes CS 1, 2, 3, 4
  • PPP-stack

Specification for CSD Data

  • CSD up to 14.4 kbps
  • USSD
  • Non transparent mode

Specification for SMS

  • Point to point MO and MT
  • SMS cell broadcast
  • Text and PDU mode

Software features

  • 0710 MUX protocol
  • Embedded TCP/UDP protocol
  • FTP/HTTP
  • FOTA
  • MMS
  • Embedded AT

Specification for Voice

  • Tricodec
    – Half rate (HR)
    – Full rate (FR)
    – Enhanced Full rate (EFR)
  • AMR
    - Half rate (HR)
    - Full rate (FR)
  • Hands-free operation
    Echo suppression

Interfaces

  • Interface to external SIM 3V/ 1.8V
  • Analog audio interface
  • RTC backup
  • SPI interface (option)
  • Serial interface
  • Antenna pad
  • I2C
  • GPIO
  • PWM
  • ADC

Compatibility

  • AT cellular command interface

Approvals

  • CE, FCC, RoHS, PTCRB, GCF
    IC, ICASA, TA, REACH, OCD, AT&T
