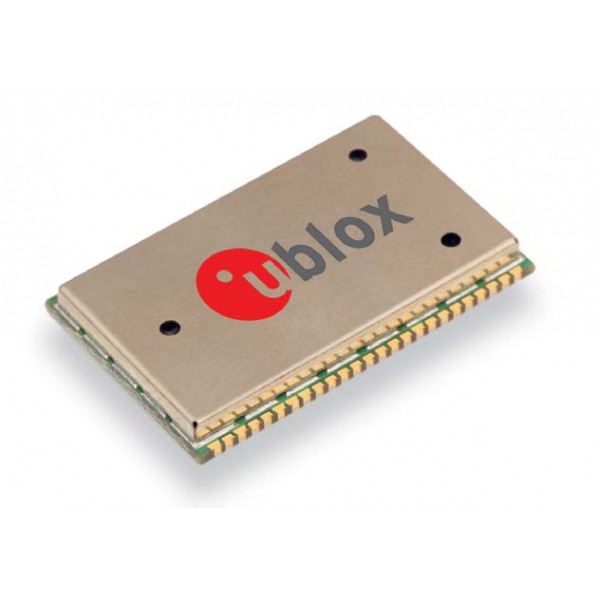

u-blox LEON-G100

Part no.:

LEON-G100-08S

Availability In Stock
Shipping
Worldwide
Contact us for price
u-blox LEON-G100
Benefits of purchasing at Wivia.com
Find more in...

Product description

LEON-G1 modules provide full feature quad-band GSM/GPRS data and voice communication in a compact and cost optimized SMT form factor. LEON modules are fully qualified and certified and feature extremely low power consumption and a rich set of Internet protocols. They are ideally suited to M2M and automotive applications such as: Fleet management, Automatic Meter Reading (AMR), people and asset tracking, surveillance and security and Point of Sales (PoS) terminals.

LEON modules implement fully integrated access to u-blox GNSS receivers. Wireless and GNSS are controlled through a single serial port from any host processor, and A-GNSS (Assist- Now Online and AssistNow Offline) functionality is integrated.

The compact SMT package enables easy manufacturing, and simple forward migration to u-blox LISA UMTS/HSPA and CDMA 1xRTT modules and seamless GSM to UMTS and GSM to CDMA handover. This allows customers to take maximum advantage of their hardware and software investments, and provides very short time to market. An extensive set of national regulatory and operator certificates is available. RIL software for Android and Embedded Windows is available free of charge.

LEON modules are manufactured in ISO/TS 16949 certified sites. Each module is tested and inspected during production. The modules are qualified according to ISO 16750 – Environmental conditions and electrical testing for electrical and electronic equipment for road vehicles.

Technical specifications

Features

  • GSM - GSM 850 / 900 / 1800 / 1900 MHz 3GPP Release 99 PBCCH support
  • GPRS - Class 10, CS1-CS4 - up to 85.6 kb/s
  • CSD - GSM max 9.6 kb/s
  • Voice - HR / FR / EFR / AMR Echo cancellation Noise reduction
  • AT Commands - 3GPP 27.005, 3GPP 27.007 u-blox AT command extension 3GPP 27.010 MUX protocol
  • SMS - MT/MO PDU/Text mode

Software features

  • Protocols - Embedded TCP/IP, UDP/IP, HTTP/FTP
  • Network - Jamming detection GNSS
  • Interfaces - Direct access to u-blox GNSS via LEON AssistNow software for fastest GNSS Time-to-First-Fix CellLocate & Hybrid Positioning
  • AT commands - 3GPP 27.005, 3GPP 27.007 u-blox proprietary AT command 3GPP 27.010 MUX protocol
  • Firmware upgrade - Via UART (Xmodem protocol)
  • Special features - DTMF decoder inBand modem eCall and ERA-GLONASS support

Electrical data

  • Power supply - 3.00 to 4.50 V (extended range)
  • Power consumption
    - Power Off: < 90 μA
    - Idle mode2
           - DRX9: < 0.99 mA
           - DRX5: < 1.60 mA
    - GSM Voice: < 300 mA
    - GPRS Class 10: < 410 mA







Interfaces

  • Antenna 50 Ω Antenna detection
  • Serial Port - 1 UART 1 DDC (I2C) for GNSS communication
  • Audio lines - 2 audio analog - 1 audio digital (I2S/PCM) interface
  • SIM - 1.8 V and 3V
  • GPIO - 4, controllable over AT commands
  • RTC - Internal
  • A/D converter - 1, accessible via AT commands

Environmental data, quality & reliability

  • Operating temperature -40 to +85°C (extended range)
  • RoHS compliant (lead-free)
  • Qualification according to ISO 16750
  • Manufactured in ISO/TS 16949 certified production sites

Certifications and approvals

R&TTE, CE, GCF, PTCRB, FCC, IC, NCC, ICASA, A-Tick, AT&T, Rogers, Orange. See the u-blox website for latest approvals
