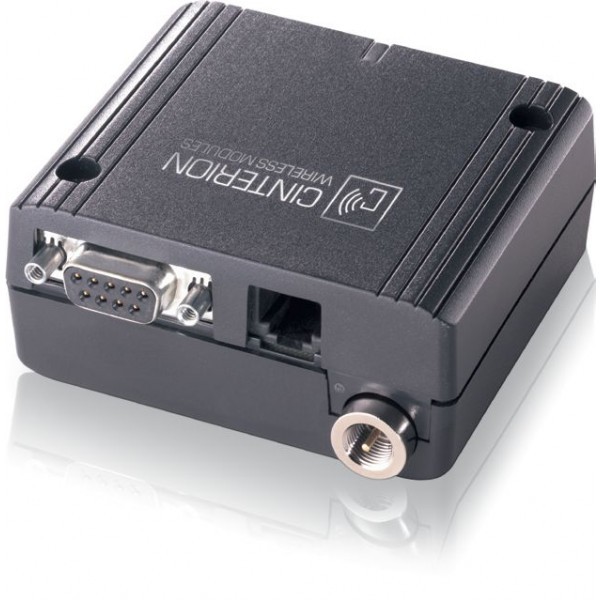

Cinterion Siemens TC35i GSM Terminal
Benefits of purchasing at Wivia.com
Find more in...

Product description

The TC35i Terminal is a Dual-Band device which has been specially designed for voice and fax communication and applications transmitting a low volume of data. The wireless communications unit is protected by robust industrial housing that also features a series of standard connectors and a SIM cardholder.

Being a standalone device, this plug-and-play solution, comes equipped with standard connectors for power supply, antenna, serial port, and handset.

On account of its focus on GSM communication, and its robust casing, the TC35i Terminal is particularly suited for M2M applications with a low data transfer volume. This makes it a product that can be employed in a wide range of business fields – metering, remote maintenance, transportation and logistics, traffic systems, vending machines, security, and facility management.

Besides this, the TC35i Terminal also comes with a range of approvals permitting its use in conjunction with mobile networks around the globe. Thanks to its full type approval (FTA), you’ll be able to keep your certification costs down and consequently lower the total cost of ownership for your application as well!

Technical specifications

General features

  • Dual-Band GSM 900/1800 MHz
  • Compliant to GSM phase 2/2+
  • Output power:
    - Class 4 (2 W) for EGSM900
    - Class 1 (1 W) for GSM1800
  • Control via AT commands
  • SIM Application Toolkit
  • Supply voltage range: 3.3 ... 4.8V
  • Power consumption:
    - Power down 50 μA
    - Sleep mode 3.5 mA
    - Speech mode (average) 300 mA
  • Temperature range
    - Normal Operation: -20°C to +70°C
    - Restricted Operation: -25°C to +75°C
    - Switch off: +80°C
    - Storage: -40°C to +85°C
  • Dimensions: 65 x 74 x 33 mm
  • Weight: 130 g


Specification for CSD data transmission

  • Up to 14.4 kbps
  • V.110
  • Non-transparent mode
  • USSD support

Specification for SMS

  • Point-to-point MO and MT
  • SMS cell broadcast
  • Text and PDU mode
Specification for fax
  • Group 3, class 1, 2

Specification for voice

  • Triple-rate codec for HR, FR and EFR
  • Basic hands-free operation
  • Echo cancellation
  • Noise reduction

Special features

  • 7E1-character framing

Inferaces

  • Antenna connector FME (male)
  • Plug-in power supply
  • Handset audio interface
  • Mini-SIM card reader
  • V.24/V.28 interface on the 9-terminal sub-D socket
  • Operating status LED

Approvals

  • R&TTE, GCF, CE
  • Local approvals and network operator certifications

Recommended accessories

Following accessories are recommended to be purchased along with this product as they might be required for operation and may not be included in this product.
