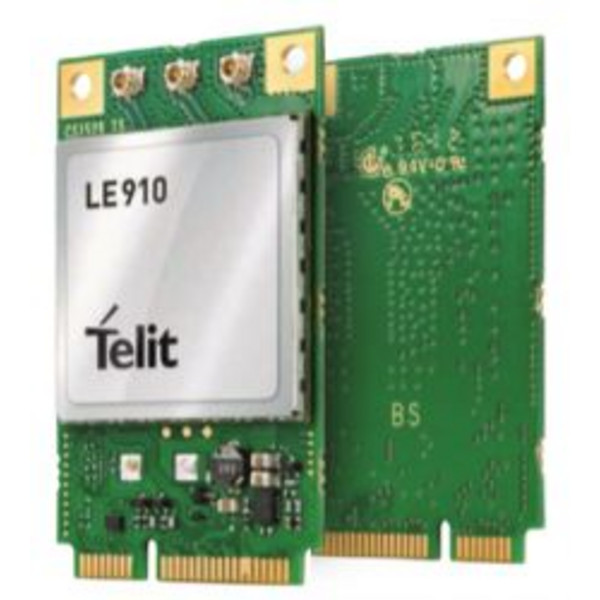

Telit LE910-EUG

Part no.:

LE910EUG

Availability In Stock
Shipping
Worldwide
Contact us for price
Telit LE910-EUG
Benefits of purchasing at Wivia.com
Find more in...

Product description

Product Description The LE910 introduces the next generation of Telit LTE modules. It is essentially two high-speed cellular modules in one. An LTE 3GPP Release 9 module delivering data rates of 100 Mbps downlink and 50 Mbps uplink and an HSPA+ module delivering up to 42 Mbps downlink and 5.76 Mbps uplink rates. The LE910 automatically falls back to HSPA+ if it is unable to register onto an LTE network. Two LTEonly (single-mode) variants are available as well. It also includes Multiple-input multiple-output (MIMO) technology, an essential feature to meet demands for data rate and link reliability in modern wireless communication systems including LTE.

Key Benefits
• Easy to integrate with peripherals and actuators using USB 2.0 HS, UART and user definable GPIOs
• Increased connectivity performance with MIMO and RX diversity
• Ideal platform for m2m applications and mobile data and computing devices with ultra-compact design and extended operating temperature range
• Combines high-speed wireless connectivity combined with embedded multi-constellation high-sensitivity positioning GPS + GLONASS receiver
• Internet friendly with integrated TCP/IP and UDP/IP stacks
• Simple drop-in migration and technology design reuse path to 2G and 3G with any xE910 module
• Over-the-Air firmware update • Battery-friendly 1.8 V GPIO

Technical specifications

Product Features

  • Market Europe and Australia
  • LTE Upload (Mbps) 50
  • LTE Download (Mbps) 100
  • HSPA+ Upload (Mbps) 5.76
  • HSPA+ Download (Mbps) 42.0
  • Frequencies:
  • LTE bands (MHz) 800 (B20) / 1800 (B3) / 2600 (B7)
  • UMTS | HSPA+ bands (MHz) 850 (B5) / 900 (B8) / 2100 (B1)
  • GSM | GPRS | EDGE bands (MHz)  900 / 1800
  •  Rx Diversity and MIMO DL 2x2
  • Embedded GPS | GLONASS receiver
  •  SIM Access Profile
  •  LTE 3GPP release 9 compliant
  •  SIM application Tool Kits 3GPP TS 51.014
  •  Digital voice
  •  IP stack with TCP and UDP protocol
  •  Standard and extended AT command set
  •  e-Call compliant Data LTE
  •  Uplink up to 50 Mbps
  •  Downlink up to 100 Mbps HSPA+
  •  Uplink up to 5.76 Mbps
  •  Downlink up to 42.0 Mbps UMTS
  • Uplink/Downlink up to 384 kbps


Data

LTE
• Uplink up to 50 Mbps
• Downlink up to 100 Mbps HSPA+
• Uplink up to 5.76 Mbps
• Downlink up to 42.0 Mbps UMTS
• Uplink/Downlink up to 384 kbps

Environmental

• Dimensions 28.2 x 28.2 x 2.2 mm
• Temperature Range -40°C to +85°C
• REACH and RoHS compliant Interfaces
• 144-pin LGA

Interface

• 10 I/O ports including multifunctional I/Os
• USB 2.0 HS • UART
• 1.8 V / 3 V SIM interface
• RF pad, RX Div. & MIMO pad, GNSS Antenna pad



Approvals
• CE, GCF (Europe)
• FCC, PTCRB, IC (North America)
• KCC (Korea)

Electrical & Sensitivity

• Output power
- Class 4 (2 W, 33 dBm) @ GSM 850 / 900
- Class 1 (1 W, 30 dBm) @ GSM 1800 / 1900
- Class E2 (0.5 W, 27 dBm) @ EDGE 850 / 900
- Class E2 (0.4 W, 26 dBm) @ EDGE 1800 /1900
- Class 3 (0.25 W, 24 dBm) @ UMTS
- Class 3 (0.2 W, 23 dBm) @ LTE
• Supply voltage
- Nominal: 3.8 VDC
- Range: 3.3 - 4.2 VDC
